WoodLine PARALLEL

LINEAR WALL & CEILING PLANKS

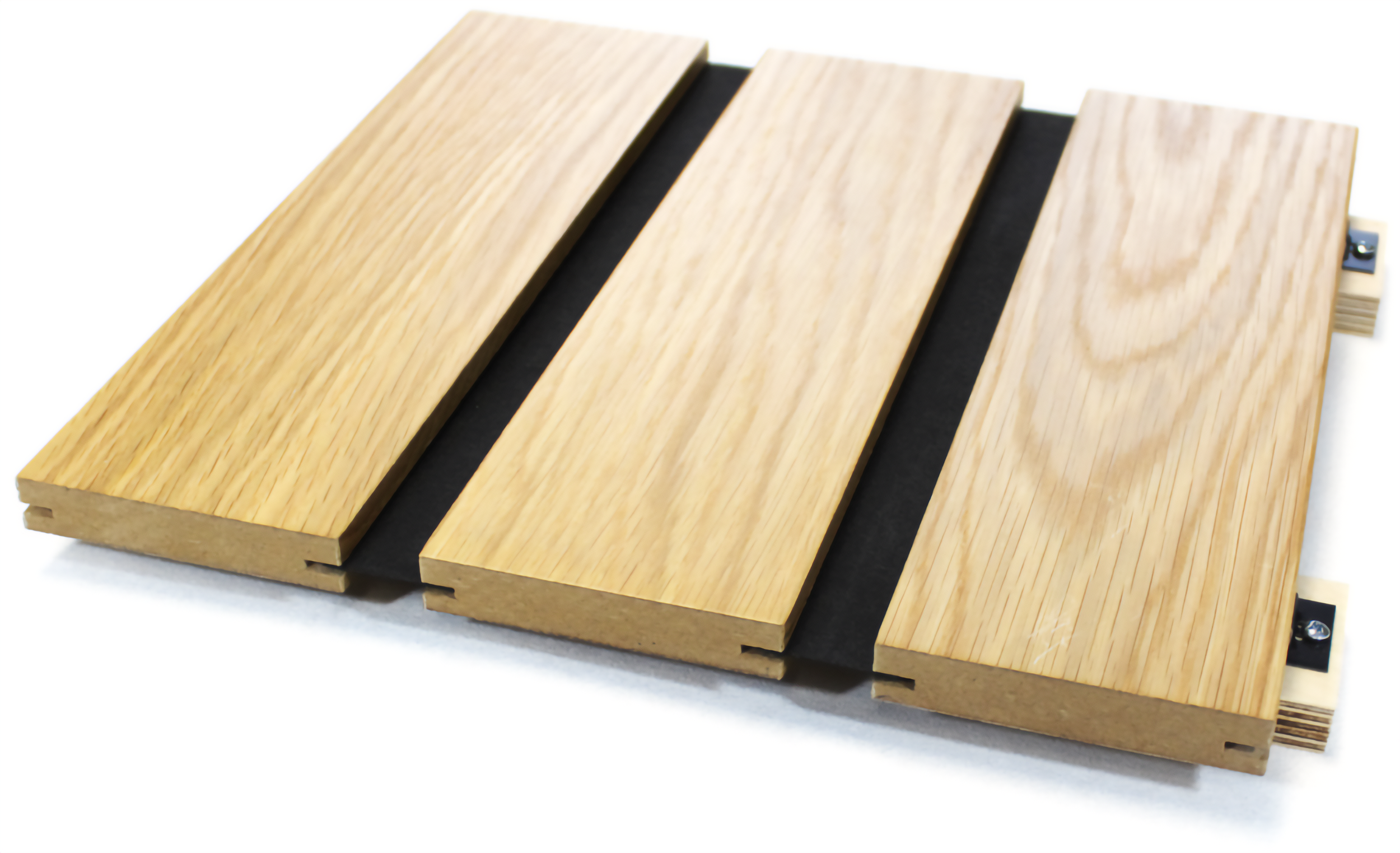

WoodLine Parallel wall and ceiling planks feature a continuous linear aesthetic utilizing straight lines. Planks are available in genuine wood veneer or laminate and offered with reveal or flush edge details. The reveal edge includes an acoustical textile providing added acoustical performance. The flush edge leaves a standard 5/64” groove between planks.

Perforations can be added to Parallel wall and ceiling planks to achieve optimum acoustical results with NRC ratings up to 0.90. The larger the perforations or the higher the number of holes, the more open-air space within the product, resulting in better acoustical values.

Note: 12-14 week lead time. Minimum of 1,500 SF or larger required to quote.

Features
• Linear Planks with Revel or Flush Edge Detail
• Face & Rear Balancing Veneers
• Standard or Custom Sizes & Reveals Available

Standard Dimensions
• Plank Widths: 2.5” up to 12”
• Plank Lengths: up to 120”
• Reveal Widths: 0.125” up to 1.1875”

Installation
• Ceiling: Pivot Clip Attaches to Standard T-grid System
• Wall: Furring Strips and Nail Clips

Finishes
• Wood Veneer or Laminate on MDF Core
• Natural Clear Lacquer (Veneer Only)
• Variety of Perforation Options

Fire Rating
• Class A fire rating per ASTM E-84
• CARB2

Acoustics
NRC Rating up to 0.90
